Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : 2.5~2.6g/cm³

Max. Service Temp : 1380℃

Flexural Strength : 70-90 MPa

Size : Customized

Heat Conduction : 23.26 W/(m·℃)

Resistivity : 1000～2000 Ω·mm2/m

Tensile Strength : 39.2～49 MPa

Max. Service Temp. : 1500℃

Linear Thermal Expansion Coefficient (20-1500℃) : 5×10⁻⁶/℃

Electrical Resistivity : 1000~2000Ω·mm²/m

Model Number : Customizable

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,,

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

Molybdenum Disilicide (MoSi2) Heating Elements
High-performance resistance heating components manufactured from pure molybdenum disilicide with maximum operating temperature of 1800°C and working range of 500-1700°C.
Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations
Key Features
  • Maximum temperature: 1800°C in oxidizing atmospheres
  • Self-forming protective quartz surface layer
  • Excellent oxidation resistance
  • Suitable for continuous high-temperature operations
  • Multiple configurations available
Product Specifications
Temperature & Shape Variants
Temperature Ratings: 1700°C, 1800°C, 1900°C models

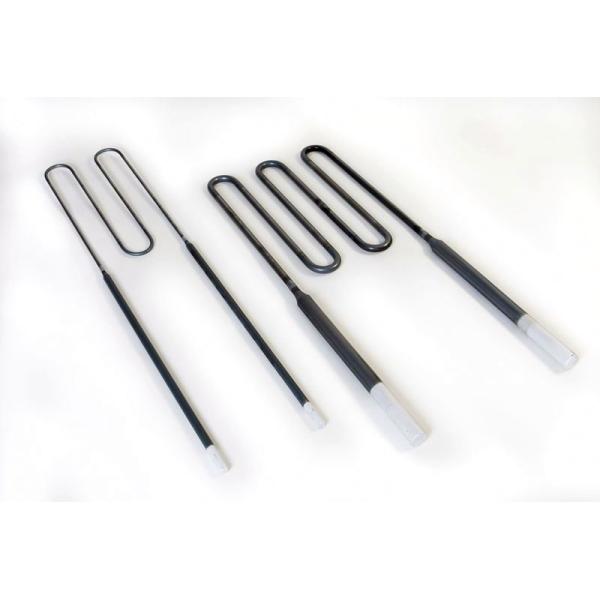

Available Shapes: U-type, W-type, I-type, U-type L-shape, W-type L-shape, Spiral types
Standard Dimensions
All models available in diameter/cold end (d/c) combinations:
Φ3/6mm, Φ4/9mm, Φ6/12mm, Φ9/18mm, Φ12/24mm
Physical Properties
Bulk Density Bending Strength Hardness Apparent Porosity Water Absorption Thermal Elongation
5.6-5.8g/cm³ ≥20 MPa (at 20°C) HV 570kg/mm² 0.5-2.0% 0.5% 4%
Recommended Surface Load
Furnace Temperature (°C) 1400 1500 1600 1650 1700
Surface Load (W/cm²) <18 <15 <12 <10 <8
Installation Guidelines
Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations
Vertical Hanging Method
Due to the material's brittleness at room temperature and plasticity at high temperatures, U-shaped elements should be vertically suspended from the furnace top using support clamps. This prevents mechanical stress on the heating zone and minimizes breakage risk.

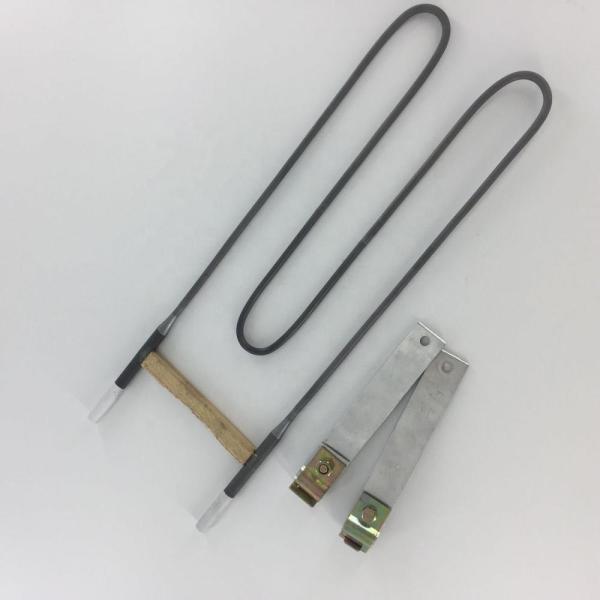

Support Clamp Requirements
Specialized clamps are required for 9/18 and 6/12 elements. Proper installation ensures vertical alignment and even heat distribution. The tapered lower end must extend fully into the furnace chamber to prevent localized overheating.
Application Range
  • 1700 Type: Suitable for operations up to 1700°C
  • 1800 Type: Suitable for operations up to 1800°C
  • 1800J Type: For temperatures ≥1800°C (Φ3-12mm W-type)
  • 1800T Type: For temperatures ≤1800°C (Φ3-12mm W-type, U-type)
Voltage-Temperature Parameters
Small Furnace (<100kW) Large Furnace (100-500kW)
Furnace Temperature Voltage Furnace Temperature Voltage
20-150°C 1/3 Operating Voltage 200-300°C 1/3 Operating Voltage
150-500°C 2/3 Operating Voltage 300-700°C 2/3 Operating Voltage
500°C-Operating Temperature Full Voltage 700°C-Operating Temperature Full Voltage
Industrial Applications
  • Ceramic sintering and processing
  • Magnetic material production
  • Glass manufacturing
  • Metallurgical heat treatment
  • Refractory material testing
  • Research and development furnaces
Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations
Provide Specifications for a Quote
To get a precise quote, please specify your required dimensions using the format below.
D1 / D2 * Le * Lu * A
Where:
  • D1 = Hot Zone Diameter (mm)
  • D2 = Cold End Diameter (mm)
  • Le = Hot Zone Length (mm)
  • Lu = Cold End Length (per side) (mm)
  • A = Shank Spacing (mm)
Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations
Packaging & Delivery
  • Robust Packaging: Each heating element is individually protected with high-density foam and packed in a sturdy, fumigated wooden case for maximum security during international shipping.
  • Global Delivery: We provide reliable worldwide shipping options to meet your project schedule.
Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations Molybdenum Disilicide (MoSi2) Heating Elements with 1800°C Max Temperature, Self-Forming Protective Quartz Layer, and Multiple Configurations
