1600°C Max Temp Silicon Carbide Heating Elements with High Oxidization Resistance and Customized Sizes for Industrial Furnaces

Name: 1600C Max Temp Silicon Carbide Heating Elements with High Oxidization Resistance and Customized Sizes for Industrial Furnaces
Brand: KEGU
Price: 200 USD

Buy cheap 1600°C Max Temp Silicon Carbide Heating Elements with High Oxidization Resistance and Customized Sizes for Industrial Furnaces product

Model Number : Customizable

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : 2.5~2.6g/cm³

Max. Service Temp : 1380℃

Flexural Strength : 70-90 MPa

Size : Customized

Heat Conduction : 23.26 W/(m·℃)

Resistivity : 1000～2000 Ω·mm2/m

Tensile Strength : 39.2～49 MPa

Max. Service Temp. : 1500℃

Linear Thermal Expansion Coefficient (20-1500℃) : 5×10⁻⁶/℃

Electrical Resistivity : 1000~2000Ω·mm²/m

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,,

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

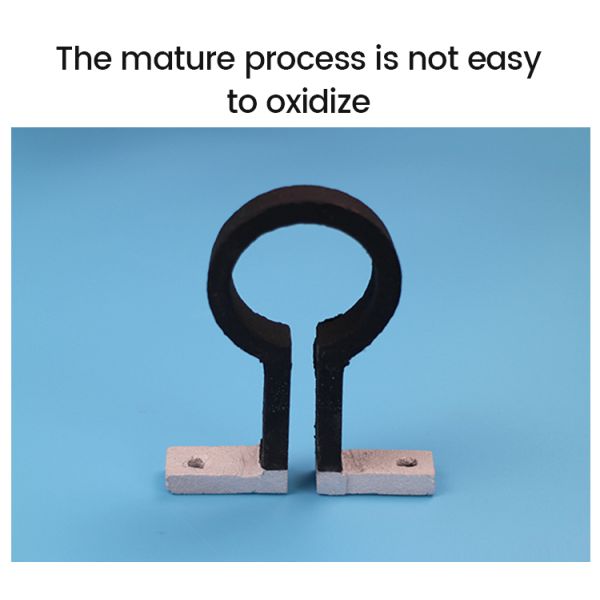

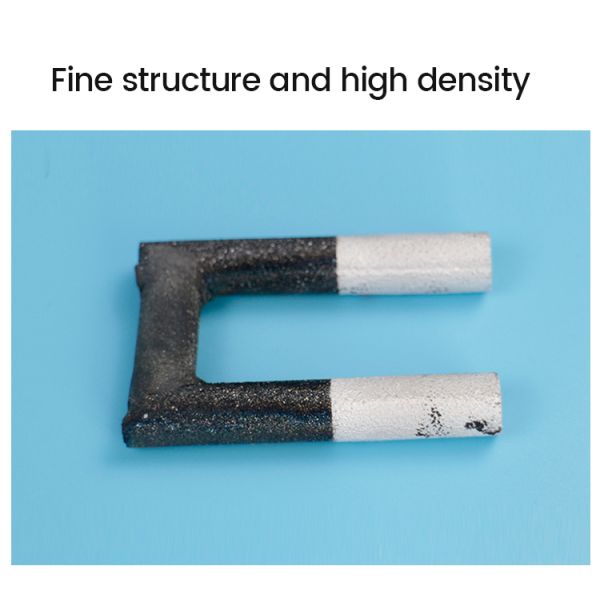

1600°C Silicon Carbide (SiC) Heating Elements for Industrial Furnaces & Kilns

High-Performance Silicon Carbide (SiC) Heating Elements for Industrial Furnaces

Our Silicon Carbide (SiC) heating elements represent the pinnacle of high-temperature ceramic heating technology. Manufactured from high-purity, six-party green SiC powder, they are recrystallized at extreme temperatures up to 2200°C to achieve exceptional structural integrity and performance.

1600°C Max Temp Silicon Carbide Heating Elements with High Oxidization Resistance and Customized Sizes for Industrial Furnaces

Engineered for Extreme Conditions & Long Service Life

These non-metal electric heating elements are designed to deliver reliable and consistent heat in the most demanding environments. They offer a maximum operating temperature of 1600°C, with a constant working life of up to 2000 hours at 1450°C in oxidizing atmospheres, making them a cost-effective and durable solution for continuous industrial processes.

Key Advantages at a Glance

Exceptional Temperature Resistance: Ideal for long-term operation at 1450°C, with a peak of 1600°C
Superior Oxidization & Corrosion Resistance: Ensures stability and longevity in harsh furnace atmospheres
Rapid Heat-Up Times: High thermal efficiency for faster process cycles and reduced energy consumption
High Mechanical Strength & Low Deformation: Maintains structural integrity and shape under extreme heat
Easy Installation & Maintenance: Simplified design reduces downtime and operational costs
Compatible with Automation: Easily integrates with control systems for precise temperature profiling and adjustable heating curves, ensuring process consistency and safety

Technical Specifications

Diameter	Length of Hot Zone	Length of Cold Zone	Overall Length	Range of Resistance
8mm	100-300mm	60-200mm	240-700mm	2.1-8.6 ohms
12mm	100-400mm	100-350mm	300-1100mm	0.8-5.8 ohms
14mm	100-500mm	150-350mm	400-1200	0.7-5.6 ohms
16mm	200-600mm	200-350mm	600-1300	0.7-4.4 ohms
18mm	200-800mm	200-400mm	600-1600	0.7-5.8 ohms
20mm	200-800mm	250-600mm	700-2000mm	0.6-6.0 ohms
25mm	200-1200mm	250-700mm	700-2600mm	0.4-5.0 ohms
30mm	300-2000mm	250-800mm	800-3600mm	0.4-4.0 ohms
35mm	400-2000mm	250-800mm	900-3600mm	0.5-3.6 ohms
40mm	500-2700mm	250-800mm	1000-4300mm	0.5-3.4 ohms
45mm	500-3000mm	250-750mm	1000-4500mm	0.3-3.0 ohms
50mm	600-2500mm	300-750mm	1200-4000mm	0.3-2.5 ohms
54mm	600-2500mm	300-750mm	1200-4000mm	0.3-3.0 ohms

Wide-Ranging Industrial Applications

This versatile heater is widely used in various high-temperature electric furnaces and heating devices across multiple industries, including:

Magnet Manufacturing
Technical Ceramics & Powder Metallurgy
Glass Melting & Processing
Metallurgy & Heat Treatment
Machinery & General Industrial Heating
