High Purity SiC Heating Rod with 1500°C Max Service Temp and Customizable Sizes for Industrial Furnaces

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : 2.5~2.6g/cm³

Max. Service Temp : 1380℃

Flexural Strength : 70-90 MPa

Size : Customized

Heat Conduction : 23.26 W/(m·℃)

Resistivity : 1000～2000 Ω·mm2/m

Tensile Strength : 39.2～49 MPa

Max. Service Temp. : 1500℃

Linear Thermal Expansion Coefficient (20-1500℃) : 5×10⁻⁶/℃

Electrical Resistivity : 1000~2000Ω·mm²/m

Model Number : Customizable

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,,

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace
The 1500°C ED Type SiC Heating Element is a non-metallic high-temperature electric heating solution manufactured from selected high-purity green silicon carbide. Through processing at 2400°C, the material forms silicon crystal blanks ideal for furnace applications operating between 600°C and 1600°C. These elements are widely utilized in glass, chemical, and electronic material heating applications.

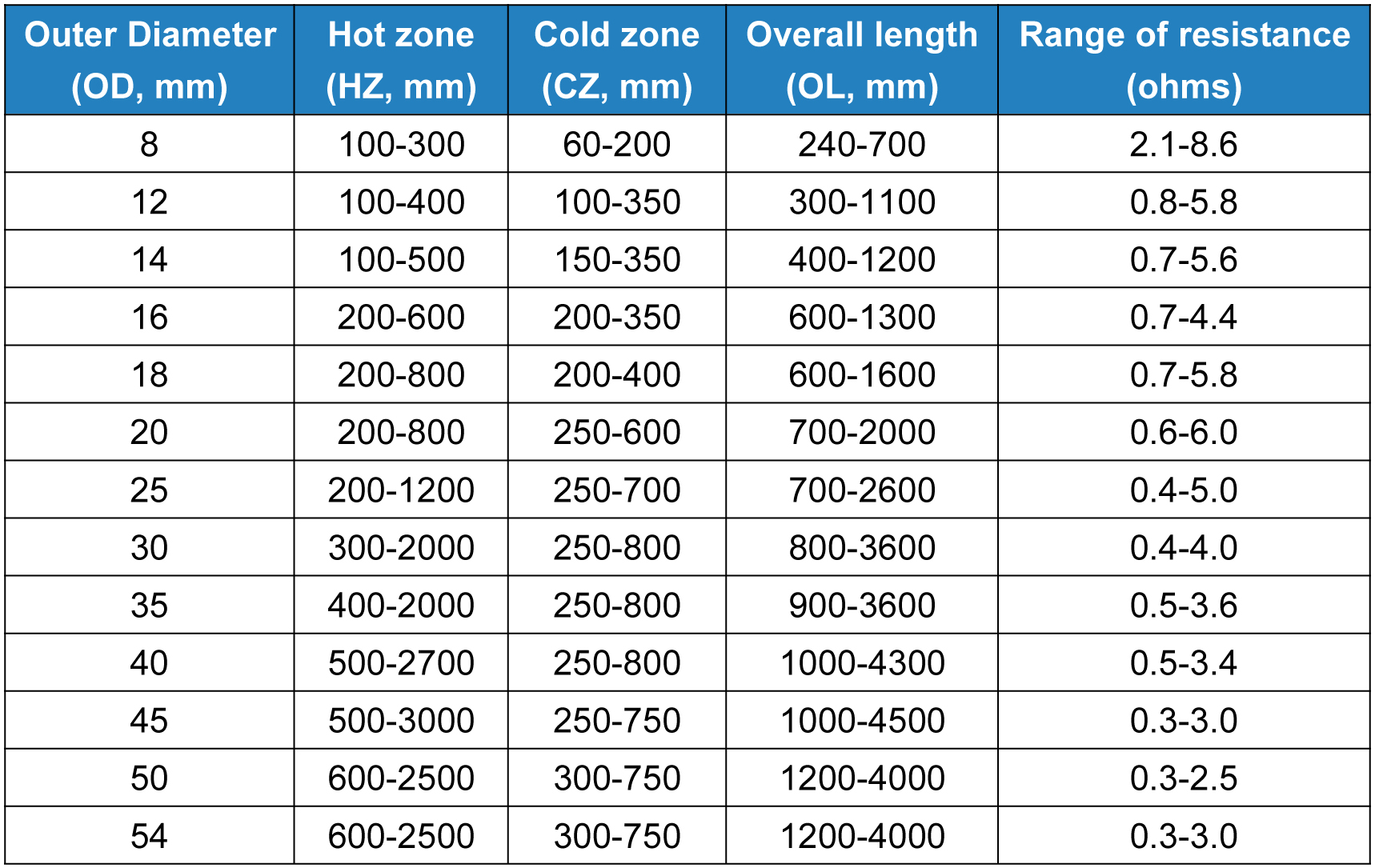

Product Specifications
Diameter Range: 8mm to 60mm
Length Range: 300mm to 450mm

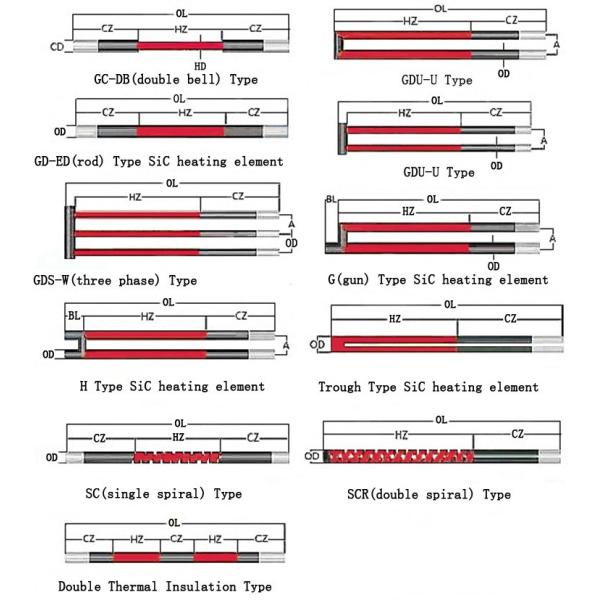

Available Configurations: Equal diameter, groove-shaped, U-shaped, gun-shaped
Key Features & Advantages
  • Maximum working temperature of 1600°C
  • Rapid temperature rise with stable performance and extended service life
  • Noise-free operation with zero air pollution
  • Easy installation and minimal maintenance requirements
